WfExS-backend with GA4GH Task Execution Service (TES)

WfExS-backend is a workflow execution orchestrator designed to support secure, reproducible, and portable execution of computational workflows.

It simplifies the reproducibility of computational analyses. Rather than manually configuring workflow definitions, software dependencies, container images, and input datasets, researchers can reproduce a previous analysis directly from a Workflow Run RO-Crate (WRROC). WfExS uses contents represented in WRROC standard to automatically reconstruct the execution environment by staging all the required components, including workflow definitions, execution parameters, container images, and reference datasets.

In this deployment, WfExS is integrated with an instance of Funnel, a GA4GH TES service implementation. This deployment uses a customised setup, in order to allow nested container executions. WfExS v1.0.9 itself runs as a container within the TES execution environment, where it prepares and orchestrates the execution of workflow-based analyses. Future developments will allow spawning these inner jobs in the very same or a different TES environment, increasing the technical scalability.

How the WfExS executor works

The execution model is based on a clear separation of responsibilities between orchestration and execution:

The overall execution flow is illustrated below.

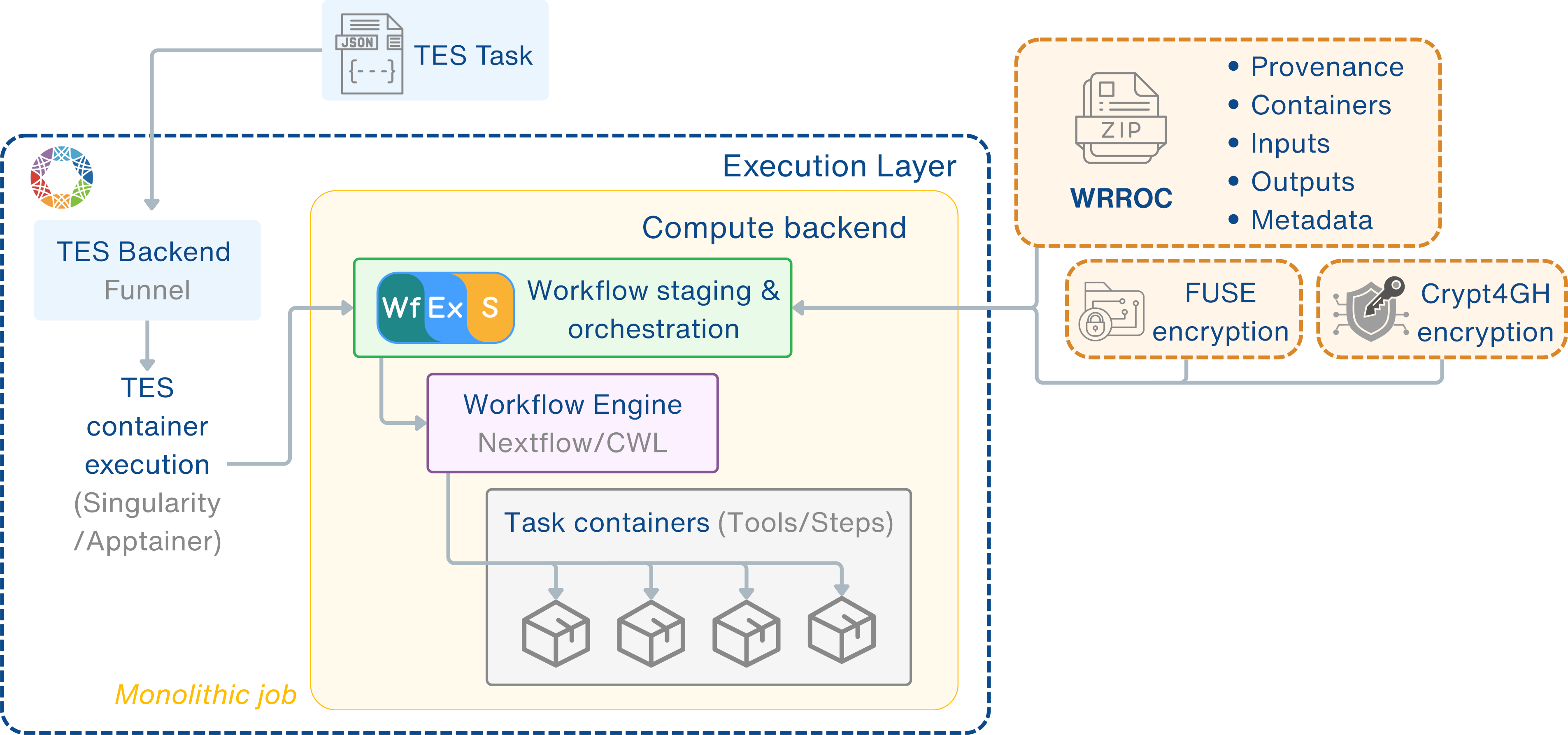

Architecture diagram WfExS with TES

Checklist for an analysis

Researchers have to submit a complex, raw TES task message, where at least one of the executors is using a WfExS-backend container, in order to execute a workflow analysis. It is highly advisable to use one of the pre-prepared WfExS TES task templates, focused on specific WRROC instances.

As existing life sciences workflows usually are able to perform more than one kind of analysis, or the same one but over different organisms, all the details of a previous, successful execution should be gathered in order to increase the reproducibility of the analyses.

As mentioned in the previous sections, the chosen workflow provenance representation is WRROC. Therefore, the WRROC used for this type of analysis is generated from a previous successful execution and captures the workflow definition (e.g. Nextflow or CWL), its internal and external dependencies, and the default values of the workflow parameters.

The WfExS TES task template must refer to that WRROC, which should be available within the TRE's internal storage. If the TRE allows public internet access, the WRROC referenced within the TES task template could be available in a public repository, like Zenodo. Also, the creator of the TES task template must describe which are the input parameters expected to be set up, like input files or detection thresholds. This is very important, to avoid unwanted changes in critical parameters of the analysis, like the location of the reference datasets or the kind of analysis. Last, but not the least important, due to the complexity of workflows from nf-core, some preparation and marshalling steps might be needed, in the form of additional executors for the task before the execution itself.

Although it is uncommon, it could happen that more than one WfExS TES task template points to the very same WRROC instance. Typical cases would be having some hardcoded bias or threshold parameters, based on internal quality assurance standards, or having more specialised pre-processing machinery, tied to custom, non-standard input formats.

Before writing and executing a workflow using a TES task message pointing to the WfExS executor, researchers and TRE admins should ensure that:

  1. A Workflow Run RO-Crate (WRROC) describing the analysis is available.
  2. Required datasets and reference resources are accessible within the TRE (or already cached).
  3. TES task template of the scenario, describing which parameters can be changed.
  4. Any modified input parameters must be compatible with the workflow.

Once these requirements are met, one of the executors described within the TES task can direct WfExS to reconstruct the analysis environment with the declared inputs, and submit the whole TES message through TRE infrastructure.

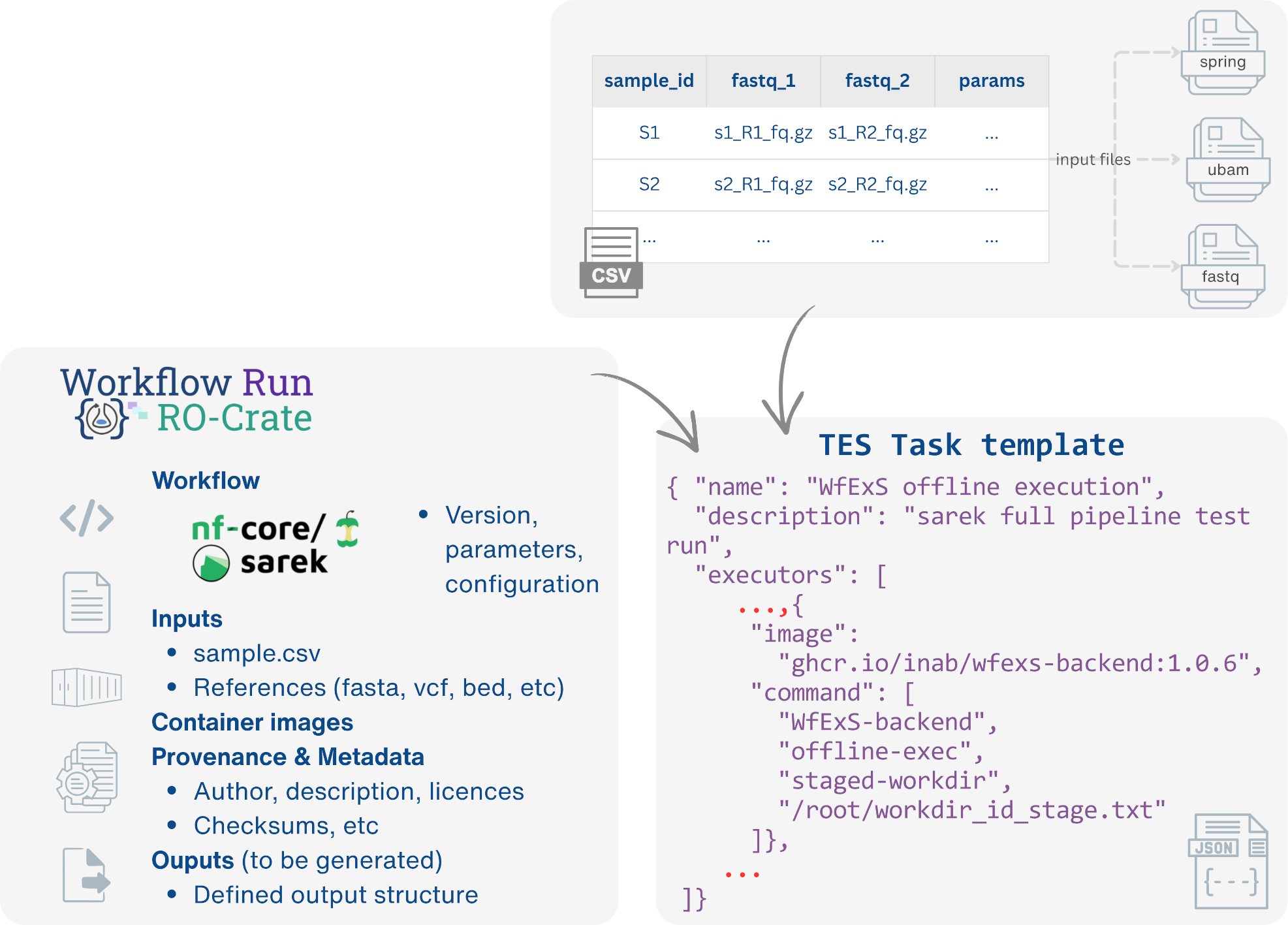

Architecture wfexs with tes

A WfExS TES task template must contain:

Templates should be provided for each supported workflow so that researchers only need to supply the information that is intended to vary between executions.

Example of minimal TES Task Template:
{
  "name": "WfExS offline execution",
  "description": "wfexs offline execution (stage)",
  "inputs": [
    {
      "name": "__workflow__",
      "description": "Workflow Run RO-Crate workflow snapshot (with pre-configured datasets)",
      "url": "URL:/path/to/WRROC",
      "path": "/container/wrroc.zip"
    },
    {
      "name": "input:1:fastq"
      "url": "URL:/path/to/INPUT",
      "path": "/data/input_1_fastq"
    },
  ],
  "outputs": [
    {
      "name": "output-wrroc",
      "description": "The WRROC which gathered the provenance of the current execution",
      "path": "/outputs/new-wrroc.zip",
      "url": "URL:/output/wrroc/path",
      "type": "FILE"
    }
  ],
  "volumes": [
    "/shared/",
    "/outputs/",
  ],
  "executors": [
    {
      "image": "ubuntu:24.04",
      "command": [
        "/bin/bash",
        "-c",
        "echo 'params:' > /shared/config.wfex.stage && echo '  input:' >> /shared/config.wfex.stage && echo '    c-l-a-s-s: File'  && echo '    preferred-name: input.fastq' && echo '    url: file:///data/input_1_fastq'"
      ],
      "workdir": "/shared",
      "stdout": "/outputs/prepare_params_stdout.log",
      "stdout": "/outputs/prepare_params_stderr.log",
      "ignore_error": false
    },
    {
      "image": "ghcr.io/inab/wfexs-backend:1.0.8",
      "command": [
        "WfExS-backend",
        "import",
        "-R",
        "/container/wrroc.zip",
        "-W",
        "/shared/config.wfex.stage",
        "-s",
        "--save-workdir-id",
        "/shared/workdir_id_stage.txt"
      ],
      "workdir": "/shared",
      "stdout": "/outputs/import_stdout.log",
      "stdout": "/outputs/import_stderr.log",
      "ignore_error": false
    },
    {
      "image": "ghcr.io/inab/wfexs-backend:1.0.8",
      "command": [
        "WfExS-backend",
        "staged-workdir",
        "offline-exec",
        "/shared/workdir_id_stage.txt"
      ],
      "workdir": "/shared",
      "stdout": "/outputs/exec_stdout.log",
      "stdout": "/outputs/exec_stderr.log",
      "ignore_error": false
    },
    {
      "image": "ghcr.io/inab/wfexs-backend:1.0.8",
      "command": [
        "WfExS-backend",
        "staged-workdir",
        "--workflow",
        "--outputs",
        "create-prov-crate",
        "/shared/workdir_id_stage.txt",
        "/outputs/new-wrroc.zip"
      ],
      "workdir": "/shared",
      "stdout": "/outputs/prov_crate_stdout.log",
      "stdout": "/outputs/prov_crate_stderr.log",
      "ignore_error": false
    }
  ]
}

Provenance and RO-Crate model

Once the workflow has finished executing, the researcher receives:

Exporting workflow results

The WfExS executor supports the automatic generation of a WRROC as part of the workflow execution. Its generation is controlled through the TES task submitted by the researcher. When preparing a TES task it can be specified that the execution results should be exported as a WRROC. Then WfExS automatically generates the WRROC once the workflow has completed successfully, packaging the workflow outputs together with the execution metadata and provenance information.

The destination directory for the exported WRROC can also be specified in the TES task, allowing researchers to control where the package is written.

This approach removes the need to manually collect output files or assemble provenance metadata, ensuring that the execution can be easily shared, archived, and reproduced.

Security considerations

Researchers should be aware of the following aspects:
